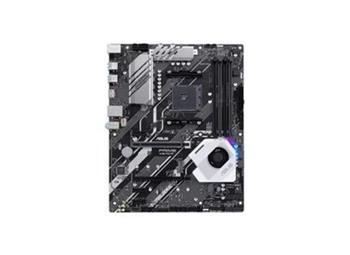

ASUS PRIME X570-P

Popis produktu:

Chipset:  AMD X570

Rozměrový formát:  ATX ( 30.5 cm x 24.4 cm )
Podpora pro procesory:  3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Patice procesoru:  AM4

Pozice na paměti:
•3rd Gen AMD Ryzen™ Processors
•4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
•2nd Gen AMD Ryzen™ Processors
•4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
•2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
•4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
•Dual Channel Memory Architecture
•ECC Memory (ECC mode) support varies by CPU.

Grafická karta:  HDMI 1.4b maximální rozlišení 4096 x 2160 @ 24 Hz
Zvuková karta:  Realtek® S1200A 8-Channel High Definition Audio CODEC
Síťová karta:  Realtek® RTL8111H

Rozšiřující sloty:
•3rd Gen AMD Ryzen™ Processors
•1 x PCIe 4.0 x16 (x16 mode)
•2nd Gen AMD Ryzen™ Processors
•1 x PCIe 3.0 x16 (x16 mode)
•2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
•1 x PCIe 3.0 x16 (x8 mode)
•AMD X570 chipset
•1 x PCIe 4.0 x16 (max at x4 mode)
•3 x PCIe 4.0 x1

RAID řadič:  Raid 0, 1, 10

SATA:  6 x SATA 6Gb/s port(s)
M.2:
•3rd Gen AMD Ryzen™ Processors :
•1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
•2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
•1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
•AMD X570 chipset :
•1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

USB:
•3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
•2 x USB 3.2 Gen 2 port(s) (2 na zadním panellu, teal blue, Type-A *)
•3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
•2 x USB 3.2 Gen 1 port(s) (2 na zadním panelu, blue, Type-A)
•AMD X570 chipset :
•2 x USB 3.2 Gen 2 port(s) (2 na zadním panelu, teal blue, Type-A)
•AMD X570 chipset :
•4 x USB 3.2 Gen 1 port(s) (4 na základní desce)
•AMD X570 chipset :
•5 x USB 2.0 port(s) (2 na zadním panelu, , 3 na základní desce)

Interní porty:
•2 x Aura RGB Strip Headers
•1 x Addressable Gen 2 header(s)
•2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
•1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
•1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
•1 x SPI TPM header
•1 x COM port(s) connector(s)
•6 x SATA 6Gb/s connector(s)
•1 x CPU Fan connector(s) (1 x 4 -pin)
•3 x Chassis Fan connector(s) (3 x 4 -pin)
•1 x PCH_FAN (1 x 4 -pin)
•1 x AIO_PUMP connector (1 x 4 -pin)
•1 x S/PDIF out header(s)
•1 x 24-pin EATX Power connector(s)
•1 x 8-pin ATX 12V Power connector(s)
•1 x 4-pin ATX 12V Power connector(s)
•1 x Front panel audio connector(s) (AAFP)
•1 x System panel(s)
•1 x Clear CMOS jumper(s)
•2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Externí porty:
•1 x PS/2 keyboard/mouse combo port(s)
•1 x HDMI
•1 x LAN (RJ45) port(s)
•2 x USB 2.0
•3 x Audio jack(s)
•2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
•4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *)

BIOS:  UEFI AMI BIOS 256 Mb Flash

Příslušenství:
•I/O Shield
•2 x SATA 6Gb/s cable(s)
•1 x M.2 Screw Package
•1 x Supporting DVD
•1 x Extension cable for Addressable LED
